Maxpeedingrods T3 T4 T04E Universal Turbo Turbocharger Wastegate Intercooler BOV Oil Line Kit

Application

Universal Turbo Kit Perfect for 1.5L-3.0L engine, 4/6 cylinder

This Kit Will be able to add 350 HP at 7.5-14.5 PSI.

(You will need Turbo Manifold, Modification and other accessories to complete the Turbo Kit Project)

*Notice: Please confirm that your vehicle displacement is 1.5L-3L before purchasing. Otherwise, if you buy the wrong one, you will not be able to use it normally.

Specification

Turbine Side:

Exhaust Inlet Flange: T3 T4 4 bolt Flange Patterns

Exhaust Outlet pipe Flange: 5 bolt Flange

Turbine Trim: 74.2

Turbine Inducer Diameter:  64.8 mm

Turbine Exducer Diameter: 55.8mm

Turbine A/R: 0.63

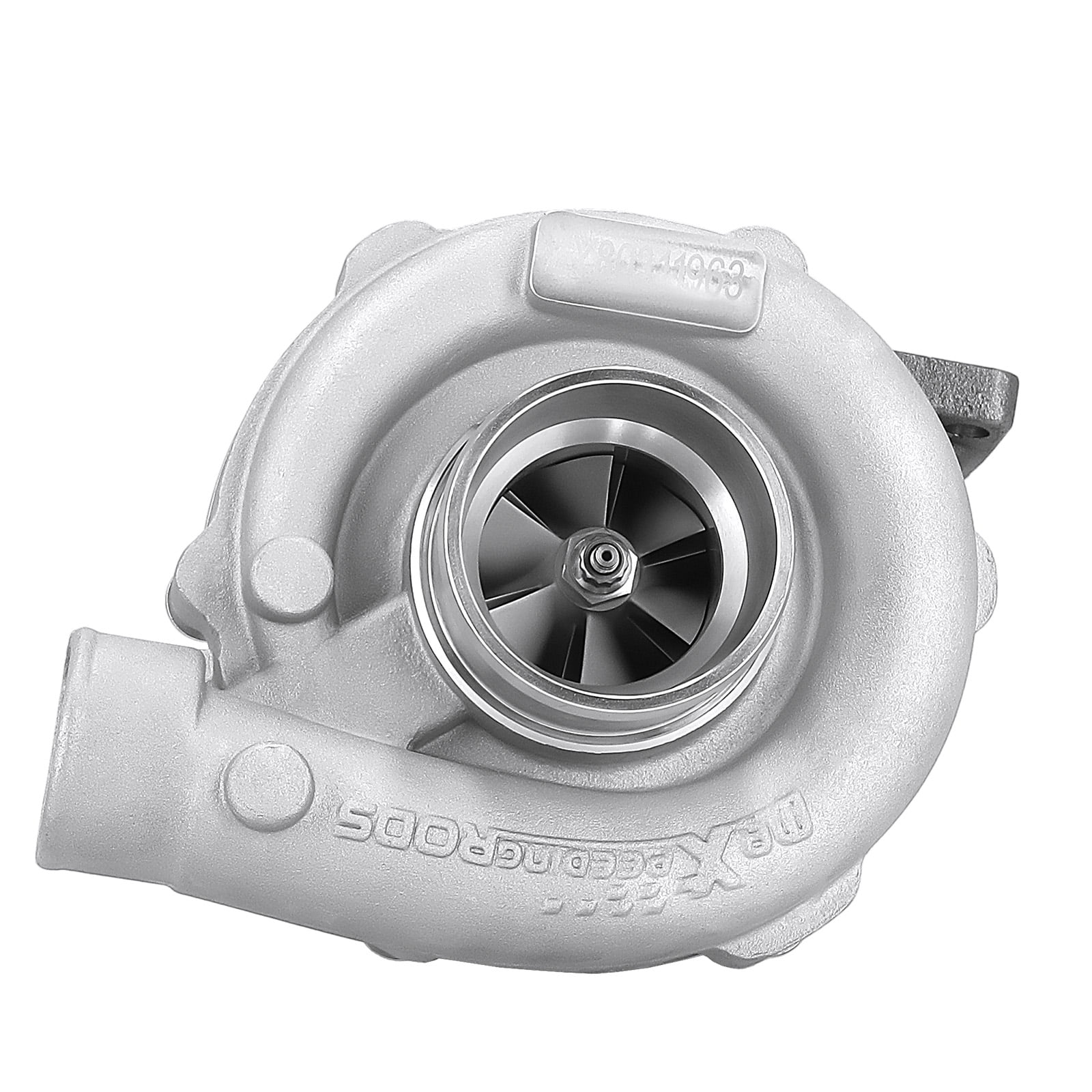

Compressor Side:

Compressor Trim: 48.1

Compressor Inducer Diameter: 52.7mm

Compressor Exducer Diameter: 76 mm

Compressor A/R: 0.5

Compressor Inlet Diameter: 72mm(2.8")

Compressor Outlet Diameter:  53mm��2"��

Bearing Type: Wet Float Bearing

Cooling Type: Oil Cooling

Thrust Bearing: 270 degree

Horsepower: Up to 400HP

Oil Inlet: 1/8 NPT

Turbo Type: Individual

Other specification in the kit :

*1 x Intercooler: Size 27'' x 7'' x 2.5'' inch. Inlet size is 2.5 inch.

Support up to 350 hp for this small intercooler size - tube and fin style .

Intercooler core size: 21*7*2.5

*1 x Type-S Blow Off Valve: 2.5" Inch Type S/Rs Flange Pipe.  25PSi Boost! (the color will be shipped randomly)

*1 x BOV pipe: can install anywhere suitable

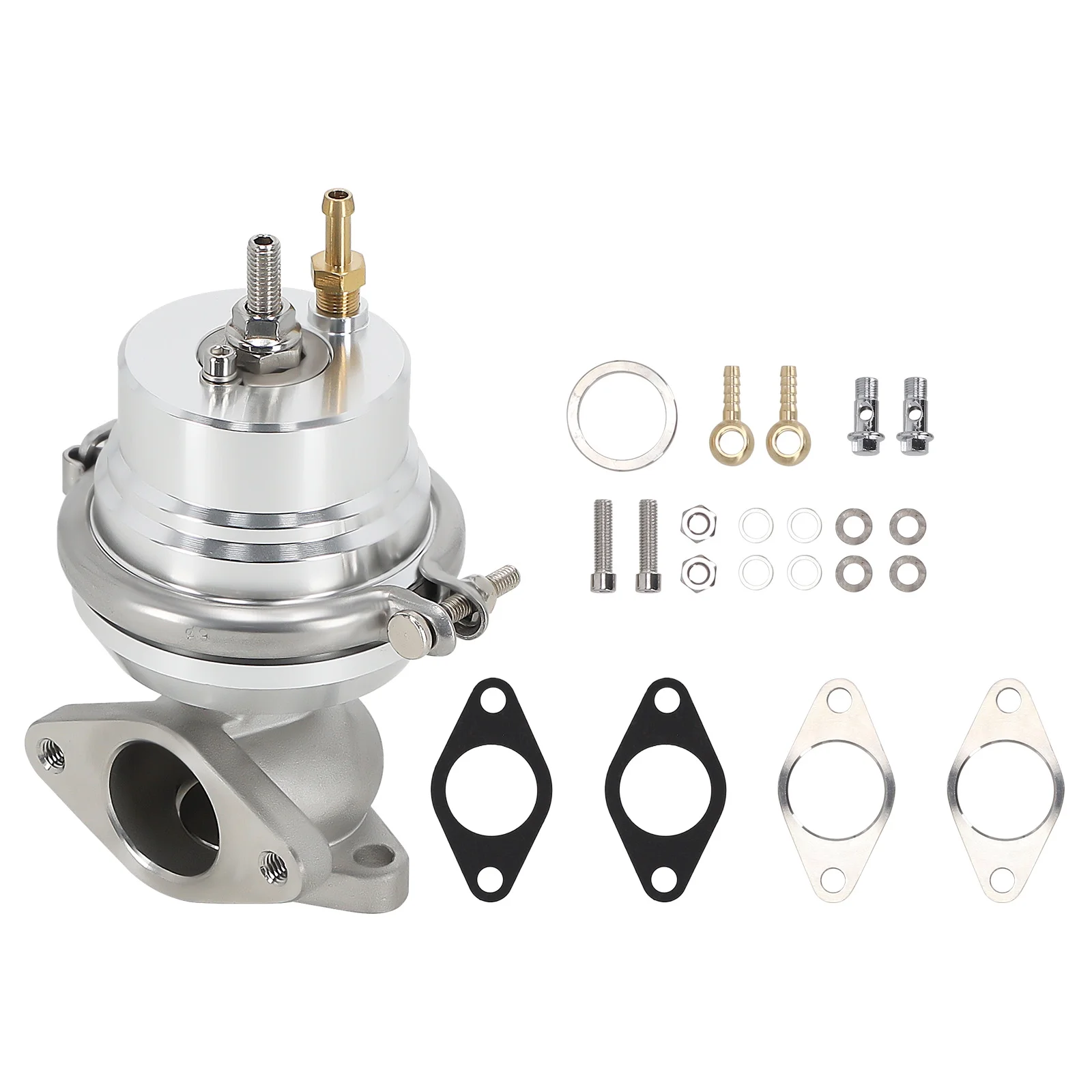

*1 x 35/38MM Wastegate: 35/38mm External Waste Gate Kit (the color will be shipped randomly)

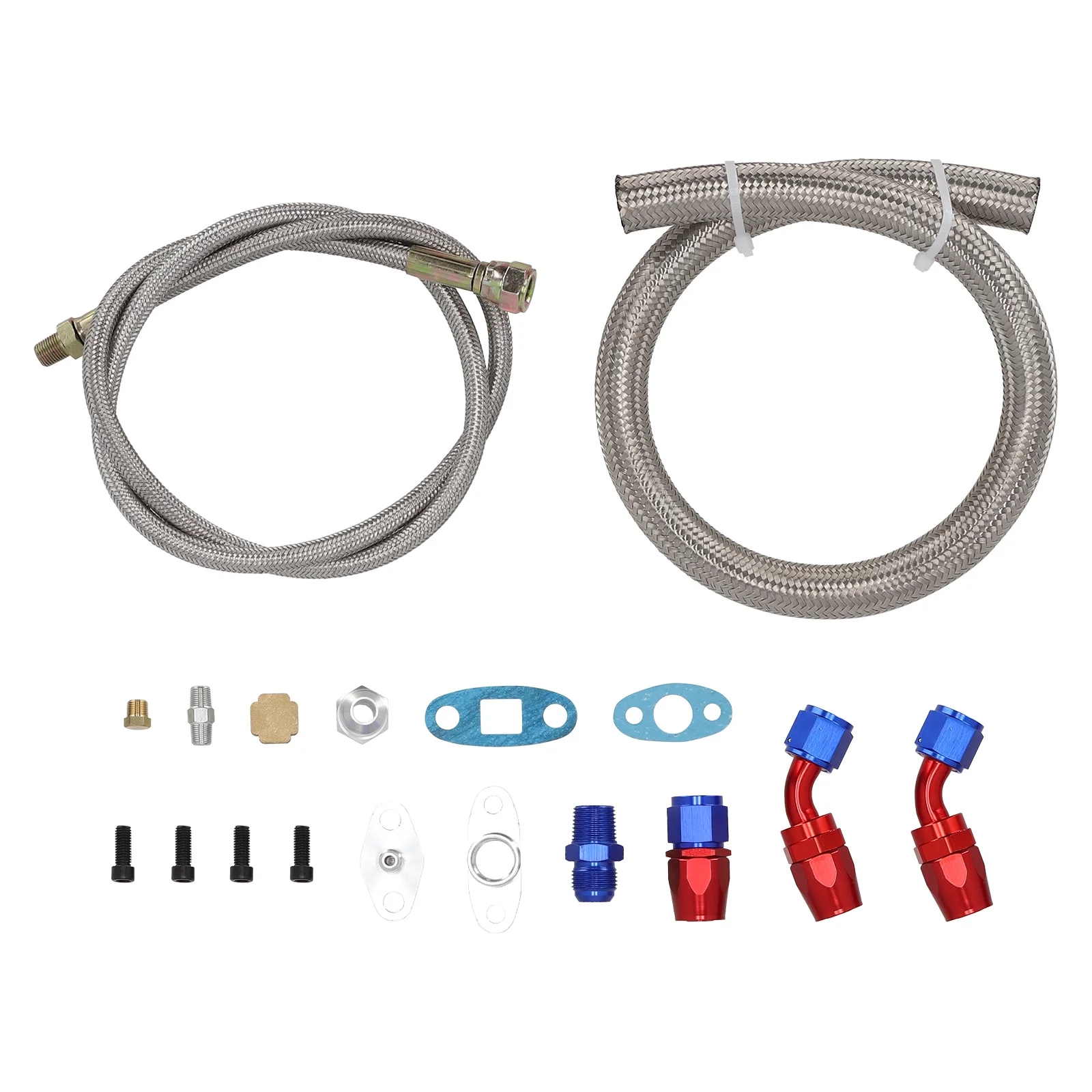

*1 x Turbo Oil Return / Feeding Line Kit: Turbo Oil Feed Return Drain Line Kit Combo.

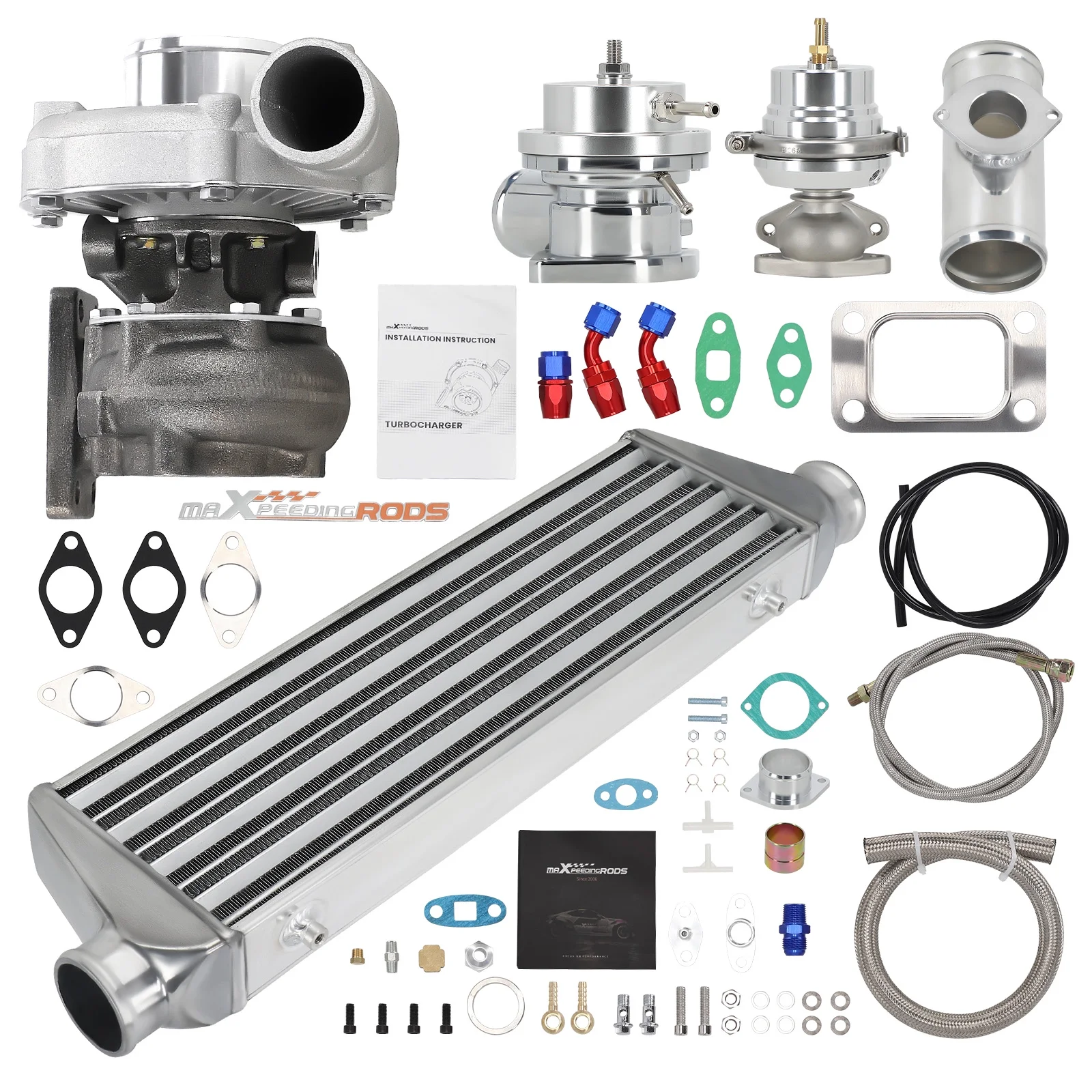

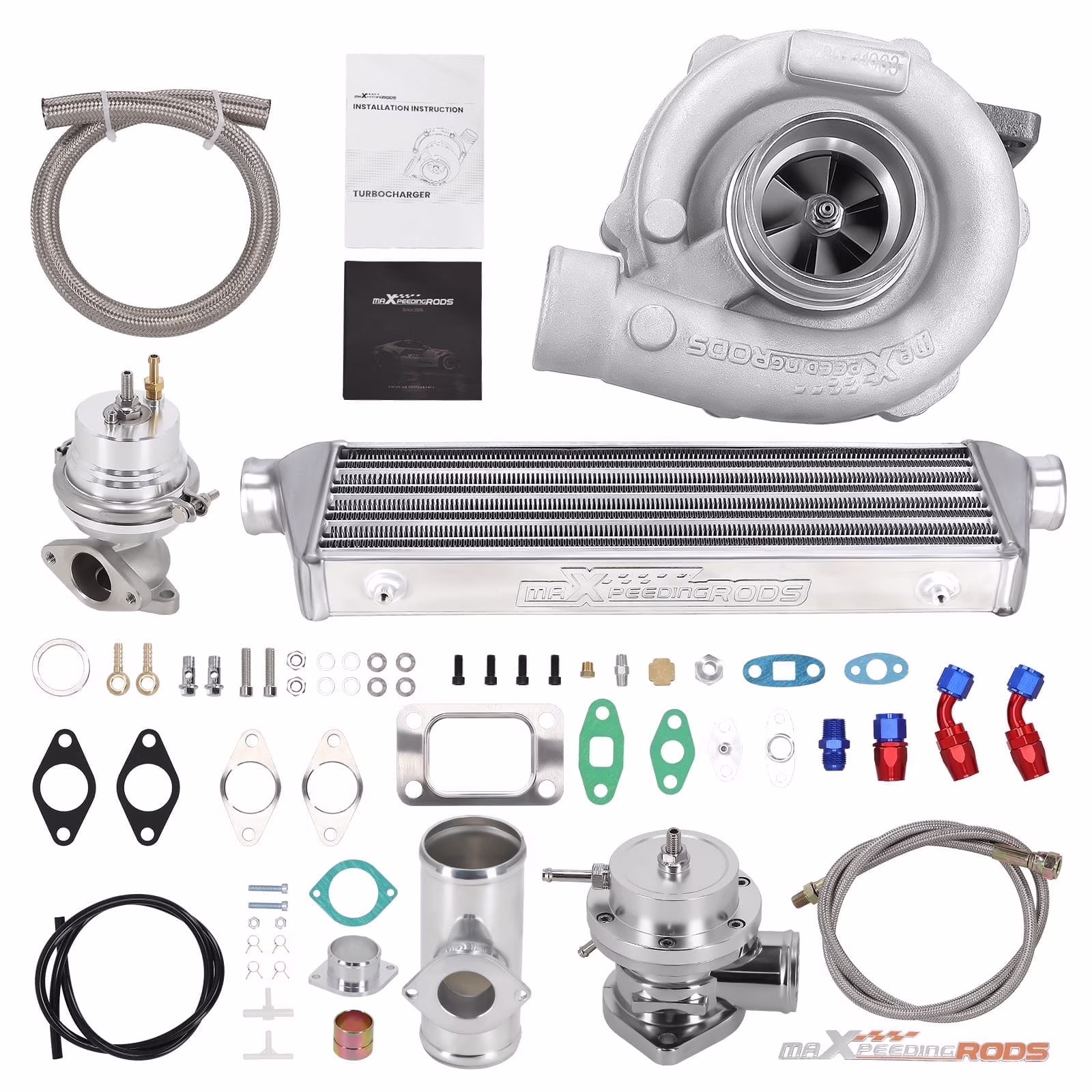

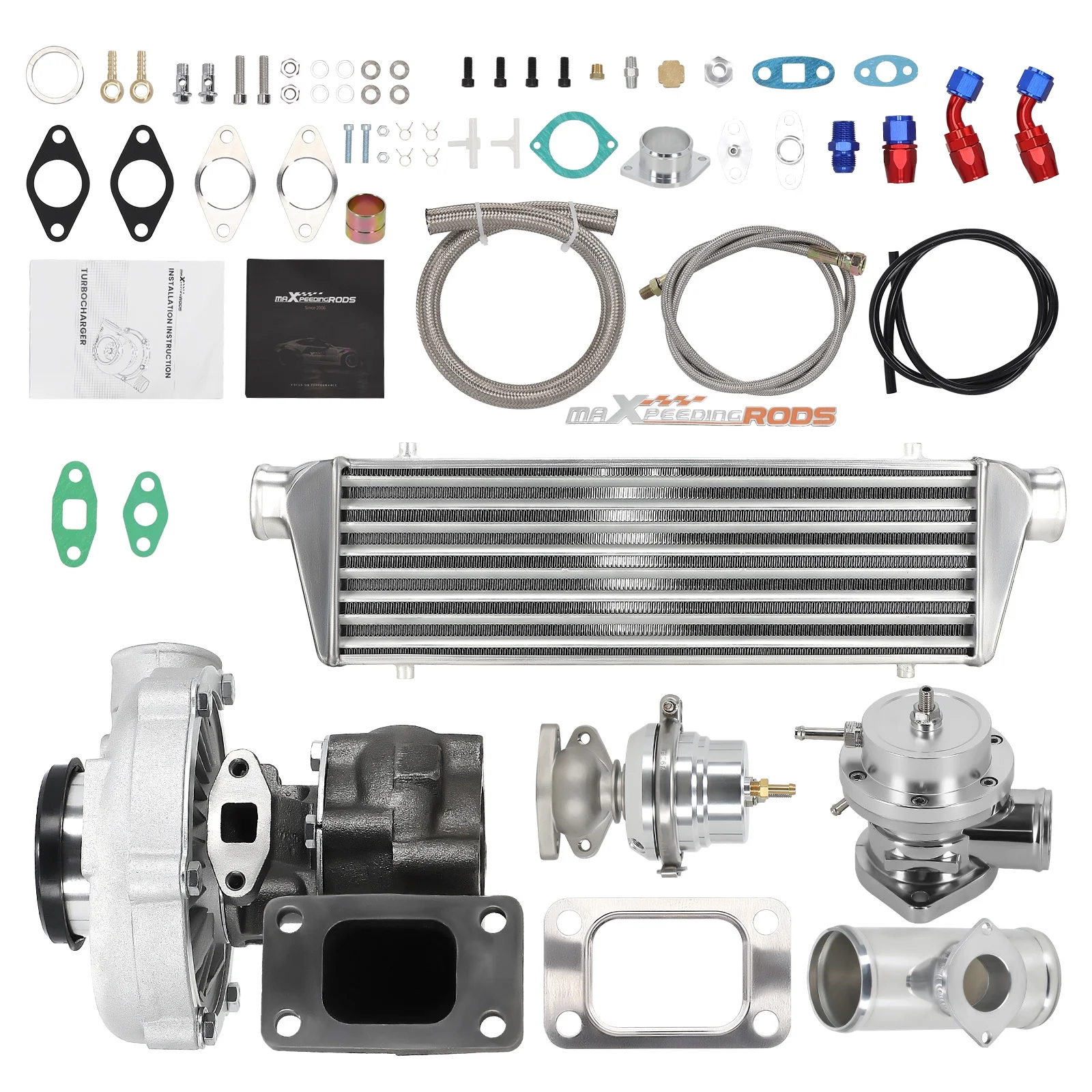

Package Include

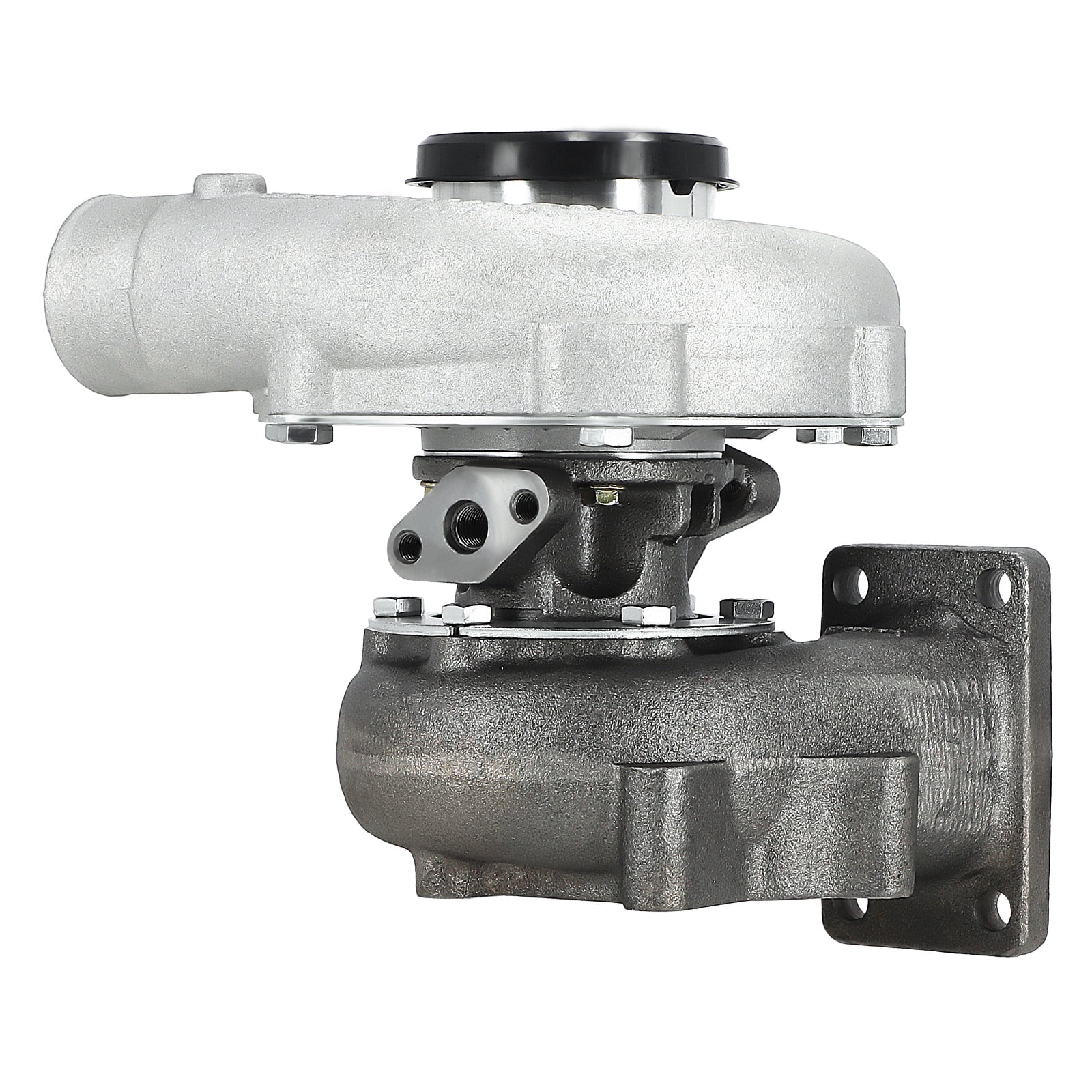

1x Turbocharger

1x Oil Feed / Return Line

1x 35/38mm Wastegate (the color will be shipped randomly(Random Color)

1x Turbo Intercooler

1x Type-S Blow Off Valve(Random Color)

1x BOV Adapter/pipe

(You will get exactly as shown in the picture)

• ��Fitment��Perfect for any 4-6 cylinder applications. Perfect for 4/6 cylinder 1.5L-2.5L engines
• ��Turbo Specification��Inlet Diameter: 3", Outlet Diameter: 2", Oil Inlet: 1/8 NPT, Compressor Wheel: .55 Trim, A/R Compressor: .50 A/R, A/R Turbine: .63 A/R
• ��1 x T3/T4 Hybrid Turbo Charger��Power performance output capability = 25-35 psi.
• ��Turbine Housing & Wheel��The turbine housing made of ductile iron is resistant to high temperatures of 1292��F. And the alloy turbine wheel has high oxidation stability and can operate well at 1652��F
• ��Aluminum Compressor Wheel��Crafted from premium forged aluminum alloy, featuring an aerodynamic design that improves airflow and compression efficiency. It ensures durability, stability, and enhanced boost response under various driving conditions
